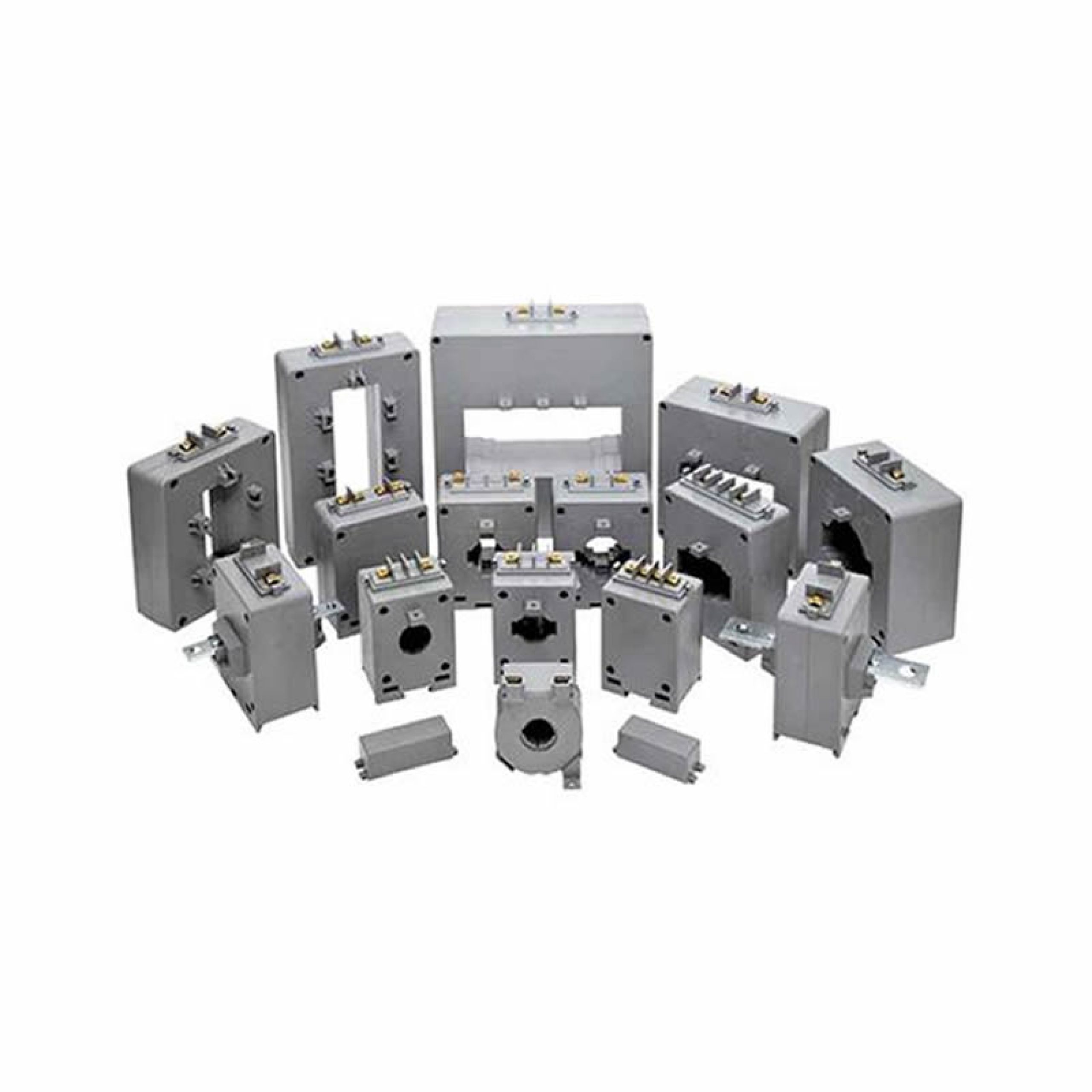

Current transformers (CT) are used to step down the primary current to a secondary value of 5A or 1A.
We have manufactured CTs with secondary values for applications on electronic boards:

• For AC current: 50mA – 60mA – 100mA – 200mA
• For AC voltage: 2V – 5V – 10V
• For DC voltage: 10V

CTs consist of iron cores in oriented grains and can be toroidal or rectangular; the number of windings is calculated according to the secondary current.
The insulation between the core and the winding is made with thermoplastic insulation materials.
The tests of the technical specifications of our production are carried out individually with SIT certified equipment.

• Primary applications: for low primary current values or when high power is required with low CT dimensions.
• Secondary applications: for other primary current values.

All CTs feature DIN rail mounting.
