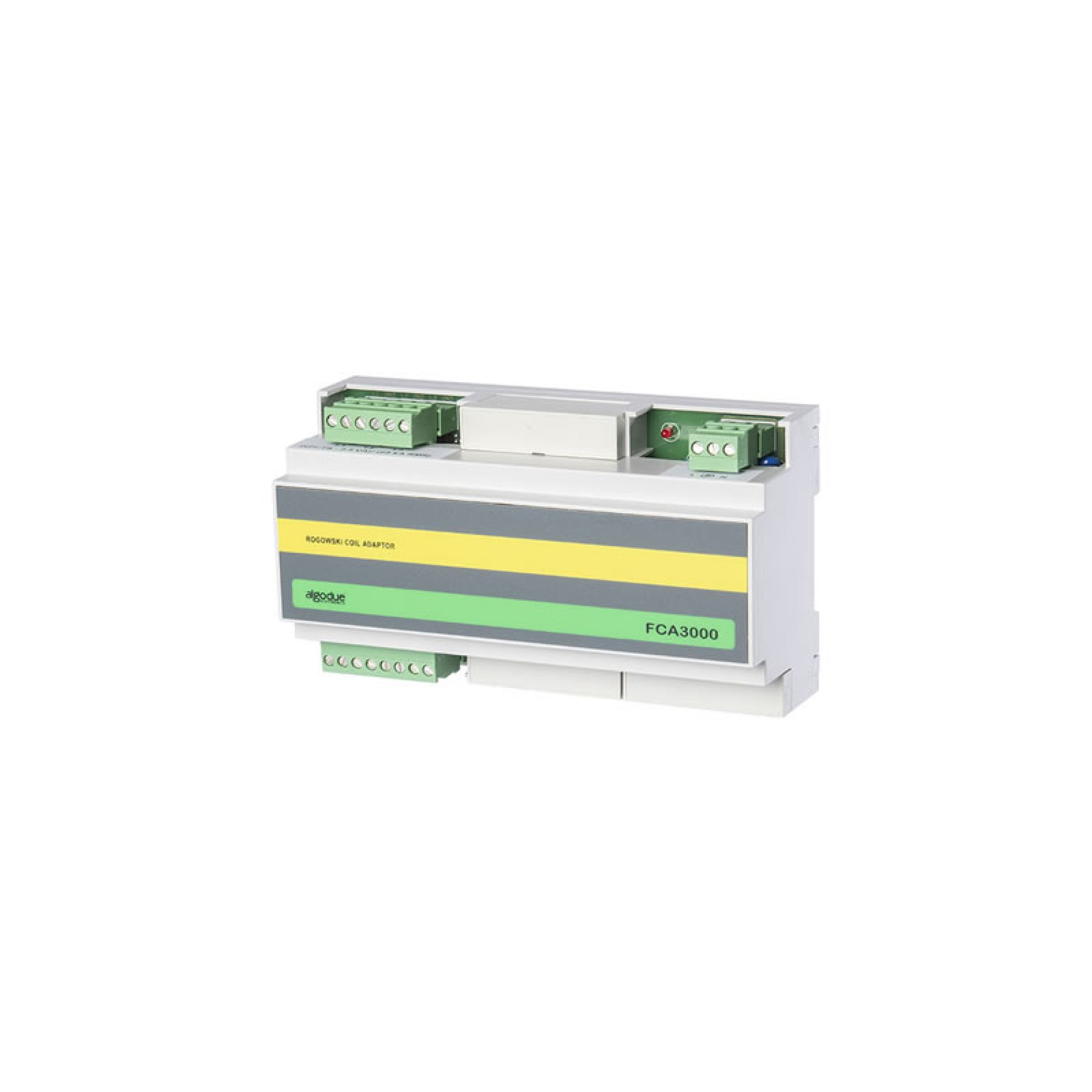

Three-Phase Rogowski Coil Converter FCA3000

The FCA3000 is a three-channel current transducer with DC output. It converts the values measured by the Rogowski coil into a true RMS value.
The FCA3000 can be used with any model and size of MFC150 Rogowski coils depending on the application. Since the FCA3000 integrates by shifting the input signal by 90°, the coils can be connected directly to the FCA3000 without any adapter. The FCA3000 has three independent input channels suitable for three transducers and four DC outputs. The first three outputs correspond to each transducer, while the fourth gives the sum of the three current channels.
The FCA3000 housing is a 9-module DIN rail for quick installation. The FCA3000 can be used as a current measurement interface in industrial devices such as PLC, SCADA systems, protection systems, control systems, measuring equipment, etc.

**TECHNICAL SPECIFICATIONS**
Power supply Nominal voltage: 80...260 VAC (45...65 Hz) Consumption: 3 VA max.	Measurement inputs Number: 3 Type: for Rogowski coil with signal equalization Sensitivity: 100mV/1kA@50Hz (only if purchased without MFC150 coil) Full scale: 3000 A 10000 A other values on request (from 300 A to 300 kA)	Analog outputs Number: 4 Type: 0...20 mA 4...20 mA 0...10 VDC Response time: 150 ms (standard) – approx. selectable via jumpers between 50 and 150 ms. Typical accuracy: ± 1% reading ± 0.3% full scale	Environmental conditions Operating temperature: -10°C to +50°C Storage temperature: -25°C to +60°C Relative humidity: max 75% non-condensing
Case features Material: plastic enclosure – noryl UL94-V0 Protection degree: IP51 (front panel); IP20 (terminals) Terminals: conductors 2.5 mm2 Size / weight: 158x94x58 mm / approx. 250 g	Standards compliance Safety: 73/23/EEC and 93/68/EEC directives, EN61010.1 safety standard EMC: 89/336/EEC directive and following changes 93/31/EEC and 93/68/EEC, EN50081-2, EN50082 -2, EN61326/A1
