Multi-Scale Rogowski Coil Integrator RPS51 with 1 A Output

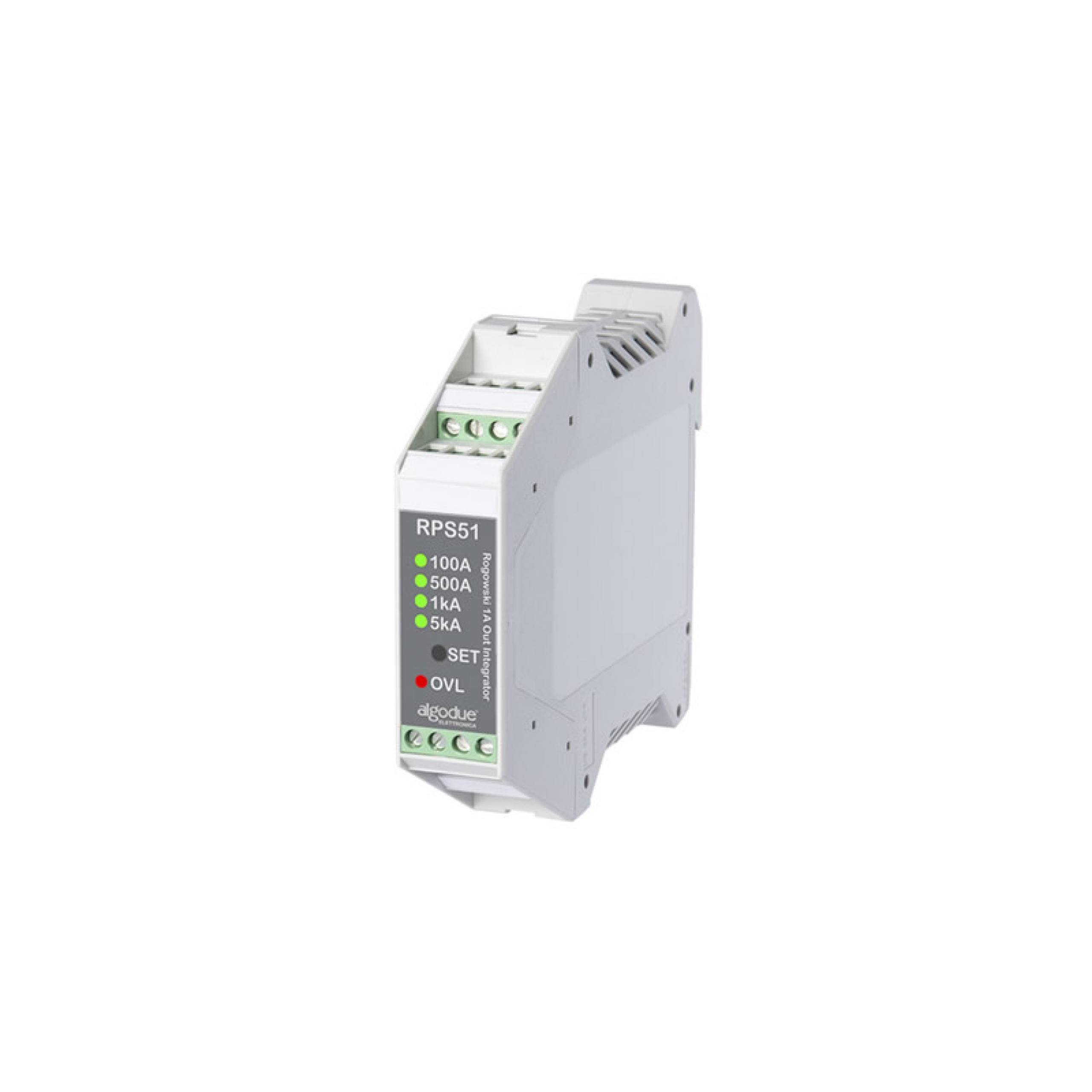

The RPS51 is a multiscale Rogowski coil integrator housed in a compact DIN rail enclosure, powered directly from the mains.
An integrator is required to equalize and shift the output signal from Rogowski coils by 90°.
It consists of an active electronic circuit with negligible offset and good linearity. The RPS51 can be combined with any model and size of MFC series Rogowski coils.
The integrator is equipped with a push-button for easy scale selection. Up to four input scales are available: 100, 500, 1000, 5000 A.
This allows a wide range of applications with a single coil and RPS51.
The RPS51 and Rogowski current transducer is a very flexible system suitable for high power load analysis, impulsive current monitoring, DC ripple measurement, etc.
Ideal solution for standard 1 A input PMDs.

**TECHNICAL SPECIFICATIONS**
Power Supply Type: Auxiliary Range: 85 ... 265 VAC, 50/60 Hz Consumption: 6.5 VA typical, max 20 VA in overload condition Safety: 300 V CAT III	Electrical characteristics Input: with MFC140/MFC150 Rogowski coil 100mV/kA@50Hz (RMS values) AC output: 1 A RMS @ selected full scale Crest factor: 2 Selectable scales: Standard values: 100 A, 500 A, 1000 A, 5000 A Bandwidth: 40 – 3200 Hz Accuracy: 1.5% at 5% full scale 1% at < full scale Phase error: < 0.1° in range 40 ... 150 Hz < 1° in range 150 ... 1000 Hz < 2° in range 1000 ... 3200 Hz	Environmental conditions Operating temperature: -25 ... +55°C Storage temperature: -25 ... +70°C	Mechanical characteristics Material: Plastic enclosure Protection degree: IP20 Size and weight: 115x100x23 mm, approx. 122 g Installation and use: Indoor
Compliance Directives: 2014/35/EU, 2011/65/EU Safety: IEC/EN 61010-1:2010-10 EMC: IEC/EN 61326-1:2012
