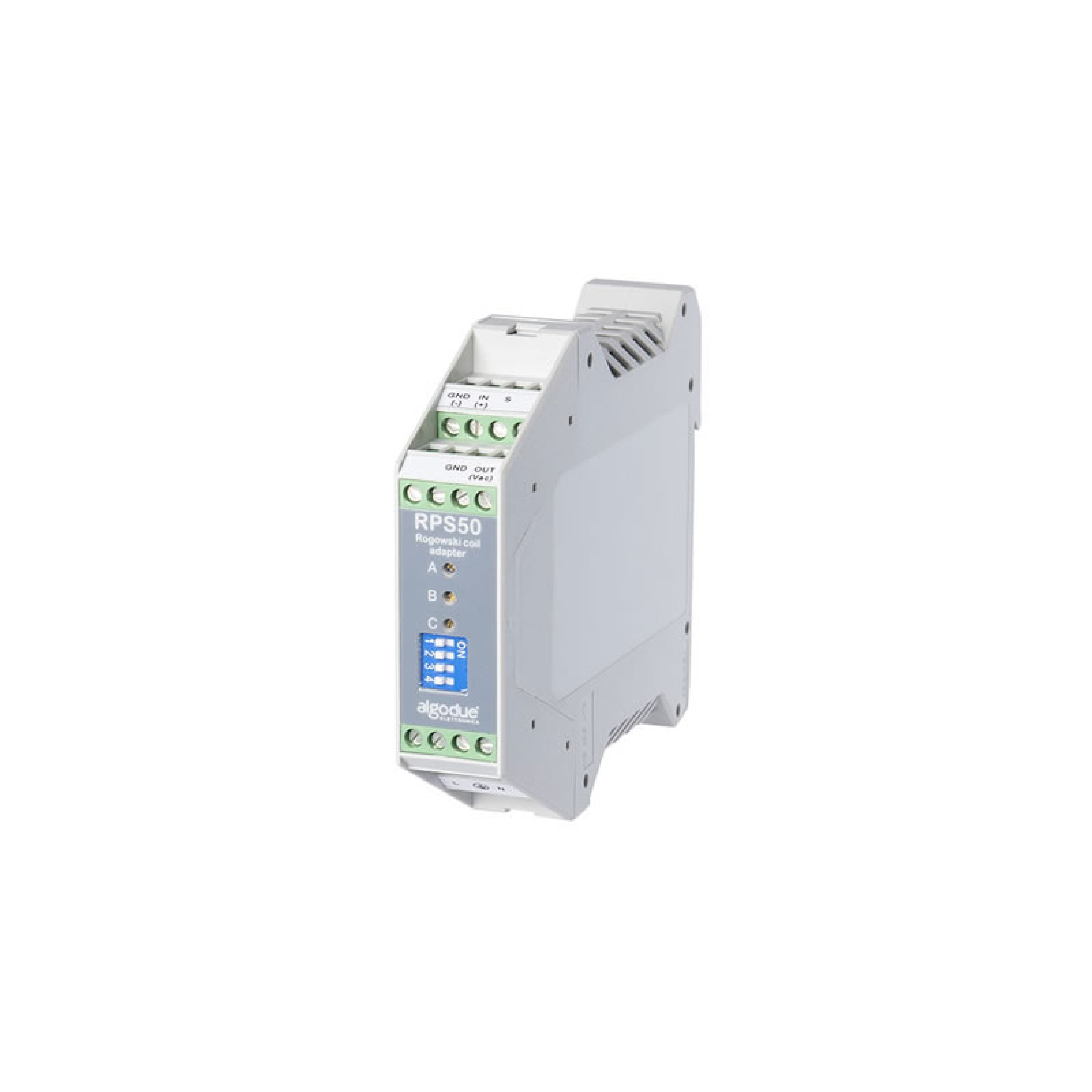

Multi-Scale Single Rogowski Coil Converter RPS50

The RPS50 is a multiscale Rogowski coil integrator housed in a compact DIN rail enclosure, powered directly from the mains.
An integrator is required to equalize and shift the output signal from Rogowski coils by 90°. It consists of an active electronic circuit with negligible offset and good linearity. The RPS50 can be combined with any model and size of MFC150 Rogowski coils. The module is available in a standard configuration with one of the following 3 full scales:
0.5 – 2.5 – 10 kA or 2.5 – 10 – 50 kA or 10 – 50 – 250 kA.
Two different outputs are available.
The RPS50 and Rogowski current transducer is a very flexible system suitable for high power load analysis, impulsive current monitoring, DC ripple measurement, etc.

**TECHNICAL SPECIFICATIONS**
Power supply Nominal voltage: 80...250 VAC 50/60 Hz Consumption: 1.5 VA max.	Electrical characteristics Input: 1 for Rogowski coil Input level (RMS) (1): 100mV/1kA@50Hz (only if purchased without MFC150 coil) Output 1: 1 VRMS (max crest factor 4.5) 3 VRMS (max crest factor 1.5) Output 1 load: > 10 kOhm Output 2: 0...10 VDC (on request: 0...20 mA, 4...20 mA) Full scale values: 0.5 – 2.5 – 10 kA 2.5 – 10 – 50 kA 10 – 50 – 250 kA Accuracy (2): better than ±1% of full scale (not guaranteed for full scale ≤10 mV) Frequency range (3): 8 Hz to 100 kHz@-3dB	Environmental conditions Operating temperature: -10°C to +50°C Storage temperature: -25°C to +70°C Relative humidity: max 80% non-condensing	Mechanical characteristics Material: plastic enclosure Protection degree: IP20 Size / weight: 115x100x23 mm / approx. 117g
Standards compliance Safety: 73/23/EEC and 93/68/EEC directives, EN61010.1 safety standard EMC: 89/366/EEC directive and subsequent amendments 93/31/EEC and 93/68/EEC, EN50081-2, EN50082 -2, EN61326/A1
