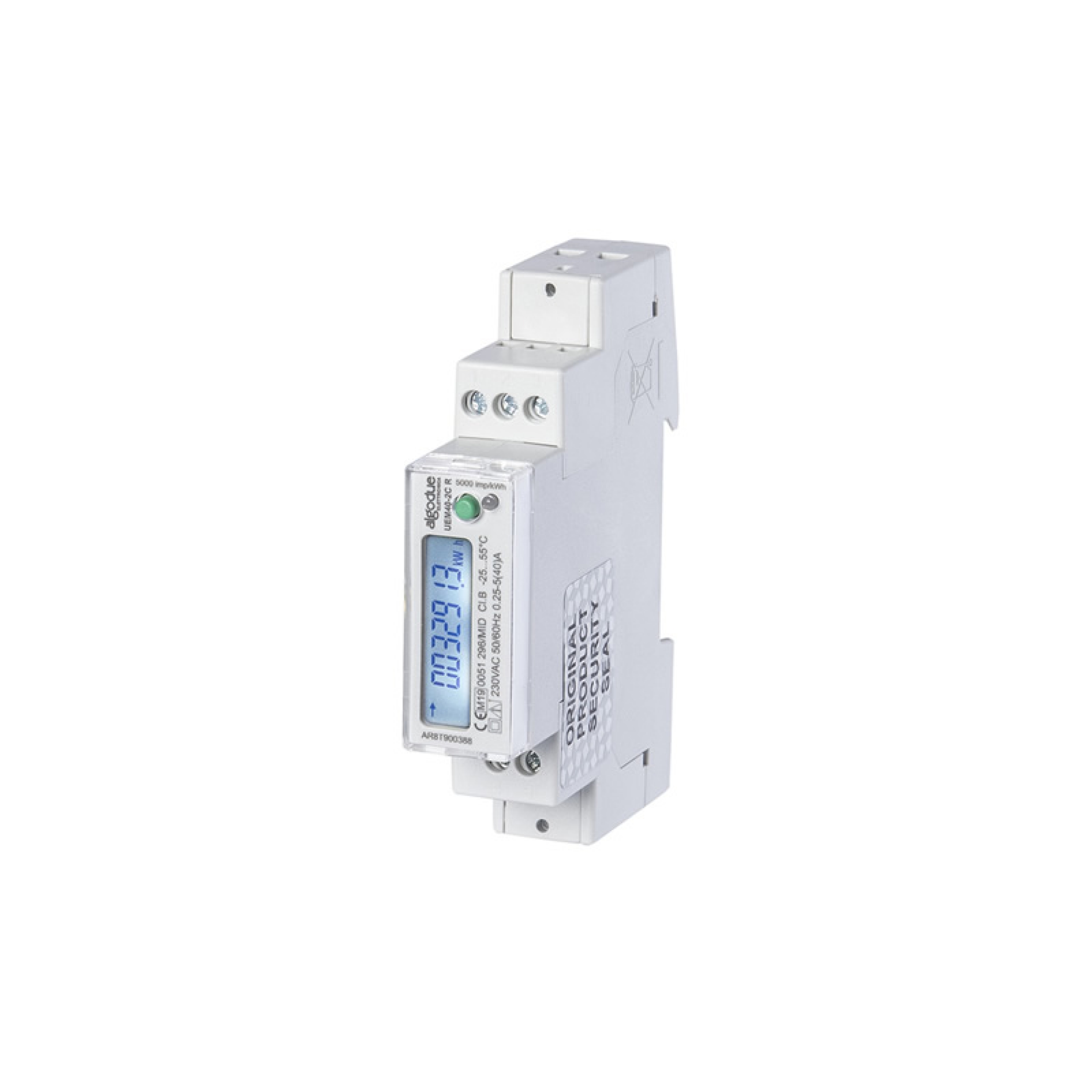

MID Energy Meter UEM40-2C
MID Energy Meter UEM40-2C

The UEM40-2C is a single-phase energy meter with 1 DIN module for energy measurement in industrial and civil applications, with built-in RS485 Modbus RTU or M-Bus communication depending on the model. It is available with MID certification suitable for billing.
In addition to energy, the meter can measure the main electrical parameters and make them available on the display and on the built-in COM port, allowing the connected meter to be managed by a remote station. Data is transmitted via an RS485 or M-Bus line depending on the device model. A dedicated application for remote management is also provided.
Backlit LCD display with clear graphic symbols understandable at a glance. Metrological LED on the front panel and sealable terminal covers.

TECHNICAL SPECIFICATIONS

Power supply

Power supplied from the voltage circuit

Voltage and frequency

Nominal values: 230 V 50/60 Hz ±20%

Current

Starting current Ist: 20 mA
Maximum current Imax: 40 A

Communication

Active (according to IEC 62053-22) Class 0.5 S
Reactive (according to IEC 62053-23) Class 2

Accuracy

Active energy class 1 according to IEC/EN 62053-21 (NO MID)
Active energy class B according to EN 50470-3 (MID)
Reactive energy class 2 according to IEC/EN 62053-23

S0 output

Passive opto-isolated

Metrological LED

Meter constant: 5000 imp/kWh
