Plug-in modules are additional communication and digital input/output modules that integrate with the UPA Network Analyzer series. They are compact devices that plug into the back of the UPA20, UPA30 and UPA41 analyzers to extend the functionality of these devices.

Available modules are:

• 485-MDB-20 communication with MODBUS protocol for UPA20 –  operating instructions
• 1DO-20 1 digital output for UPA20 –  user manual

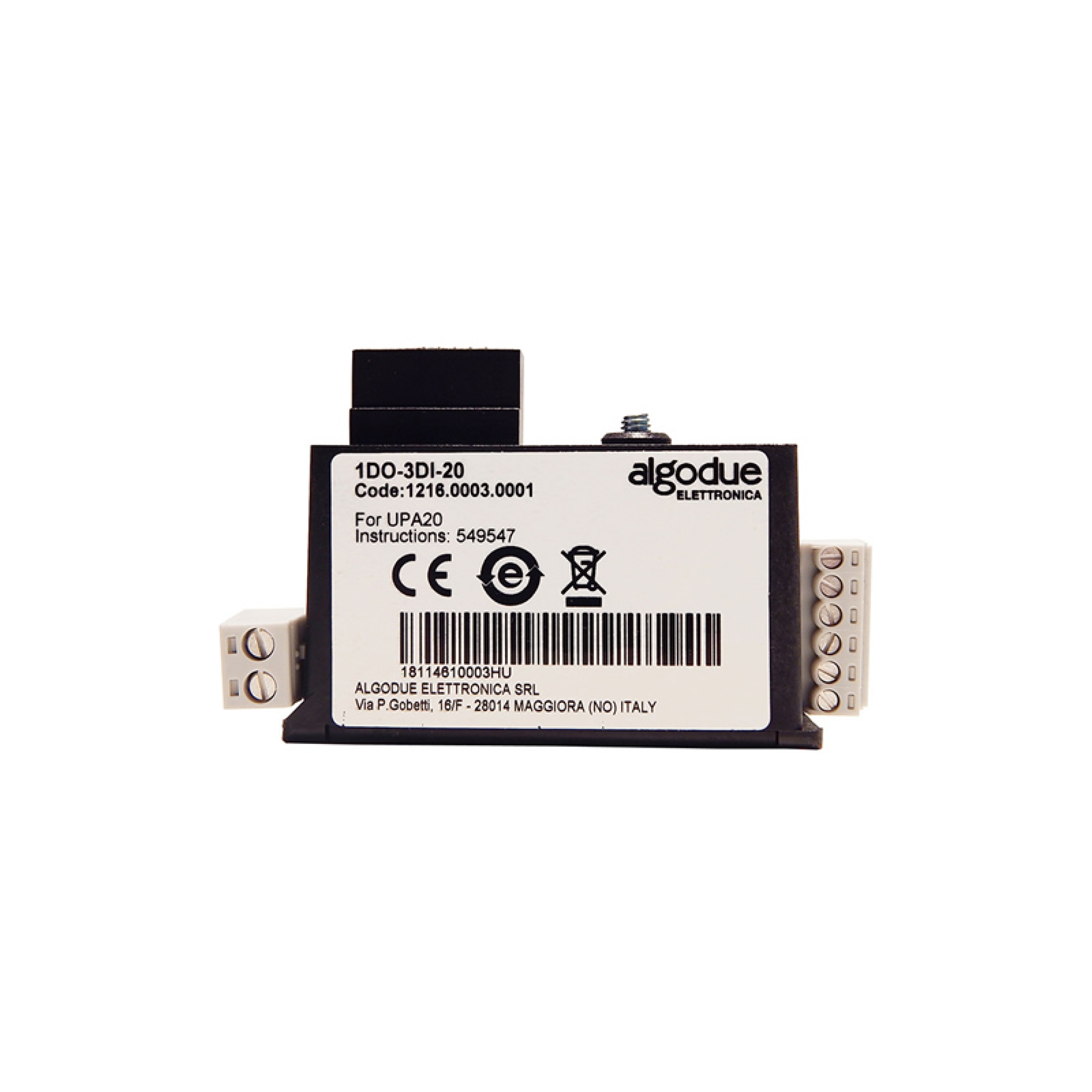

• 1DO-3DI-20 3 digital inputs for information report from external contact and 1 digital output for UPA20 –  user manual
• 485-MDB-30-41 RS485 communication with MODBUS protocol for UPA30 and UPA41 –  operating instructions
• 2PULSE-30-41 2 configurable pulse outputs for UPA30 and UPA41 –  operating instructions
• 2DO-2DI-30-41 2 digital inputs for pulse counting and 2 digital outputs for UPA30 and UPA41 –  operating instructions
• 2AO-30-41 2 analog outputs for UPA30 and UPA41 –  user manual
• TEMP-30-41 Detecting internal temperature for UPA30 and UPA41 –  operating instructions
