Energy Analyzer UPM309RGW

SMART KIT
The UPM209 is an innovative power meter for the measurement and recording of electrical parameters.

It is particularly suitable for consumption analysis and control, with an excellent quality/price ratio.

The UPM209 is the ideal power meter for establishing measurement points within the plant and can be managed completely remotely.

The data read by the PC allows the creation of consumption profiles, recorded value trends, alarm/event reporting, and cost calculation, as well as the identification of critical values.

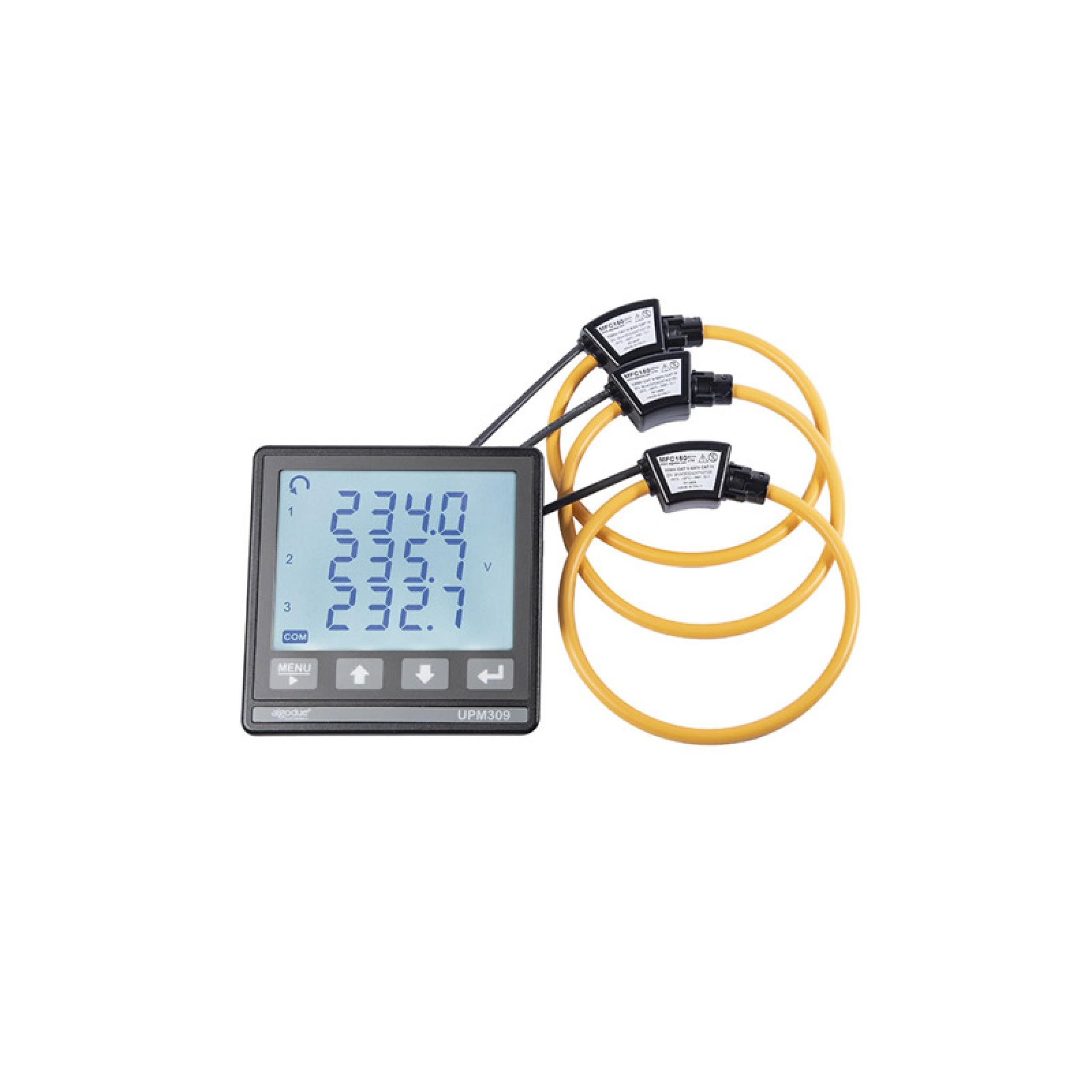

The UPM209RGW is a Smart Kit consisting of: Network analyzer + 3 Rogowski coils. The use of Rogowski coils for current measurement allows for quick installation, especially on existing plants. In case of changes to the plant, the device can be adapted to the current consumption without changing the transducer.

**TECHNICAL SPECIFICATIONS**
Power supply Voltage range (depending on model): Device with RS485 port: 230 VAC ±15%; 115 VAC ±15% on request; 85...265 VAC / 110 VDC ±15% on request Device with Ethernet port: 85...265 VAC / 110 VDC ±15% Safety: 300V CAT III Frequency: 50/60 Hz	Voltage Inputs Maximum measurable voltage: 600 VAC LL Safety: 300V CAT III	Current Inputs Maximum value: 7 A	Typical Accuracy / Performance Class (device only) Active power/energy: Class 0.5 according to IEC/EN 61557-12
Communication Port Type: RS485 opto-isolated or Ethernet (RJ45) Protocols: MODBUS RTU/ASCII in case of RS485 port HTTP, NTP, DHCP, MODBUS TCP in case of Ethernet port	Inputs and Outputs 2 digital outputs (DO), digital inputs (DI)	Size and Weight LxHxD, W: 96x96x39 mm, maximum 310 g
