Energy Analyzer UPM209RGW

SMART KIT
The UPM209 is an innovative power meter for the measurement and recording of electrical parameters.

It is particularly suitable for consumption analysis and control, with an excellent quality/price ratio.

The UPM209 is the ideal power meter for establishing measurement points within the plant and can be managed completely remotely.

The data read by the PC allows the creation of consumption profiles, recorded value trends, alarm/event reporting, and cost calculation, as well as the identification of critical values.

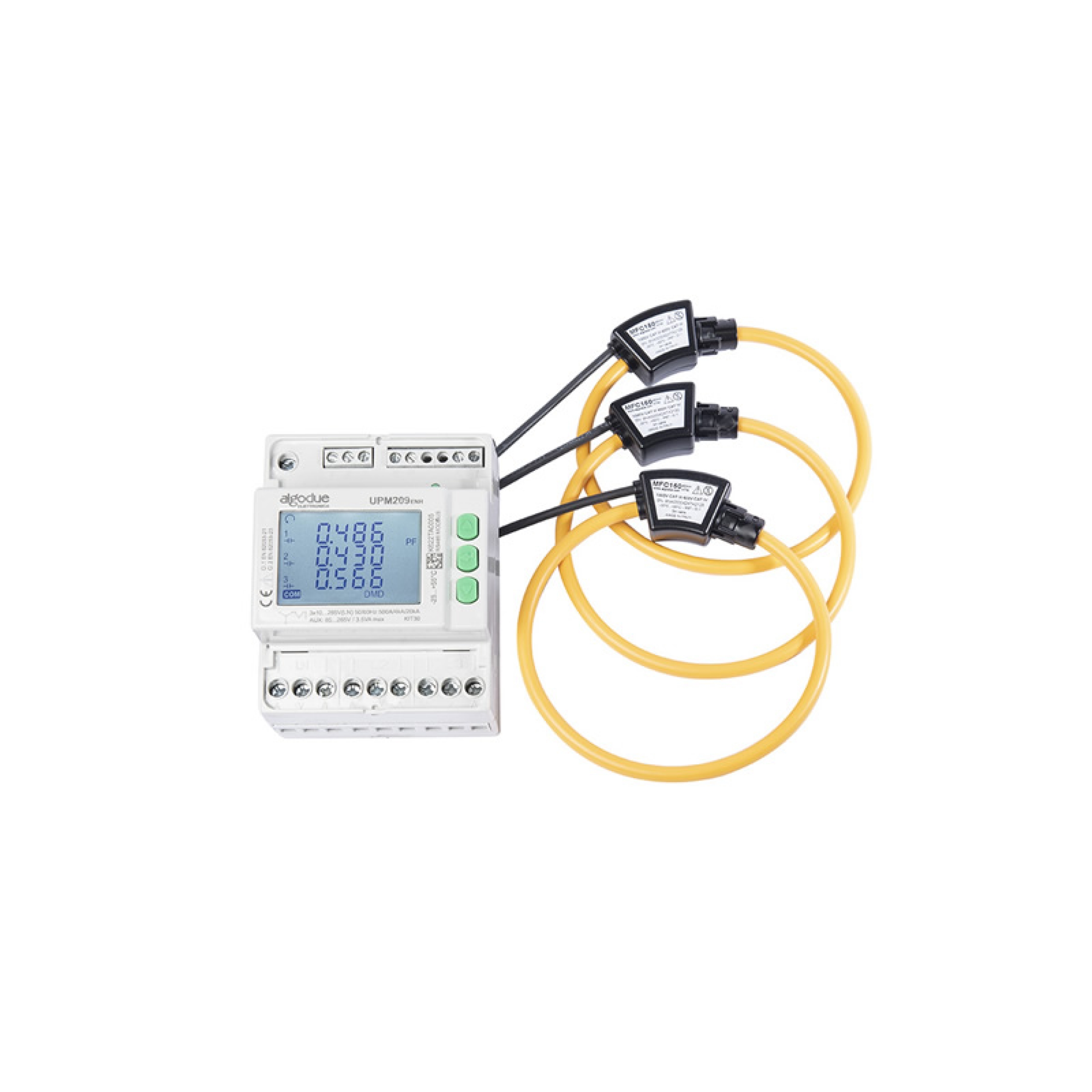

The UPM209RGW is a Smart Kit consisting of: Network analyzer + 3 Rogowski coils. The use of Rogowski coils for current measurement allows for quick installation, especially on existing plants. In case of changes to the plant, the device can be adapted to the current consumption without changing the transducer.

**TECHNICAL SPECIFICATIONS**
Power Supply Voltage range: 85 ... 265 VAC/110 VDC ±15% Safety: 300 V CAT III Max consumption: Device with RS485 port: 1.6 VA – 1 W Device with Ethernet port: 4.5 VA – 1.6 W Frequency: 50/60 Hz	Voltage Inputs Voltage range: 3×10/17 ... 3×285/495 VA Safety: 300 V CAT III	Current Inputs Maximum value 1/5A CT model: 6A 80A model: 80A	Typical Accuracy Active energy: Class 1 according to IEC/EN 62053-21
Communication Port Type: RS485 opto-isolated or Ethernet (RJ45) Protocols: MODBUS RTU/ASCII in case of RS485 port HTTP, NTP, DHCP, MODBUS TCP in case of Ethernet port	Digital Output (DO) Type: Passive opto-isolated	Size and Weight LxHxD, W: 72x90x65 mm, maximum 436 g
